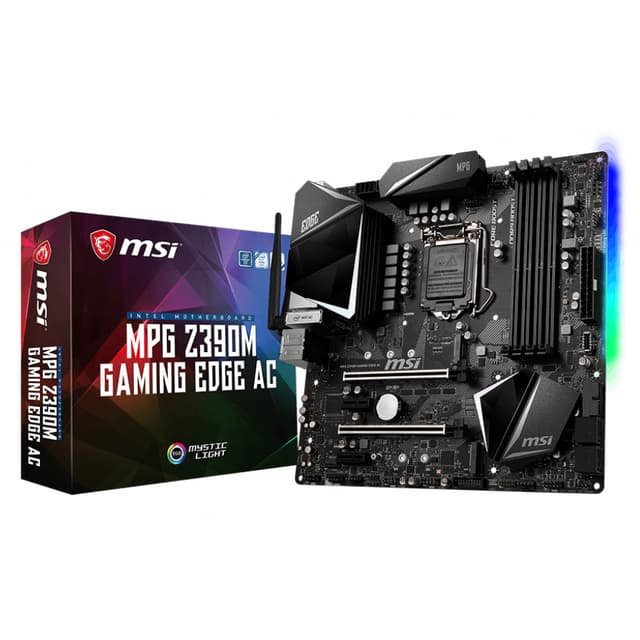

MSI MPG Z390M Gaming Edge AC moderkort

MSI MPG Z390M Gaming Edge AC motherboard lets you build a powerful gaming PC with advanced technologies and stylish Mystic RGB lighting. The Micro ATX-format board features LGA1151 socket for 9th gen. Intel processors and supports multi-GPU setup. You can install up to 64 GB fast DDR4 RAM and super-responsive M2.SSD storage. Thanks to broad range of external interfaces, you can connect a screen with up to 4K UHD resolution, 7.1 HD audio or super fast USB 3.1 Gen 2 devices.

Socket
The motherboard supports 9th generation Intel Core, Pentium and Celeron processors with LGA1151 socket. It features extended heatsink desgin to prevent throttling and ensure maxium perfomance.

Multi-GPU setup
Two PCIe x16 slots let you install dual AMD graphics in CrossFire configuration or dual Nvidia graphics in SLI configuration, enhancing your PC s gaming potential even further.

Mystic Light
Choose from over 16.7 millions of colors and 17 effects for amazing lighting patterns on the motherboard and synchronize it with your other Mystic Light components. You can manage the entire lighting for the PC from the Mystic Light app for your mobile device.

Cooling support
There are plenty of fan headers placed conveniently on the board for easy connection of multiple fans, and you can also install heavy-duty liquid cooling system thanks to dedicated water pump header with 2A current output.

Audio Boost 4
The board includes custom audio module with dedicated audio processor and supports 7.1 channel HD audio output. Nahimic 3 sound enhancement ensures studio-grade acoustics.

Intel CVNi support
This motherboard supports innovative Intel integrated connectivity solution that moves most of the wireless modules to the chipset. This means that exchange of the information happens much quicker which boosts the maximum bandwidth. Therefore this motherboard contains the Intel Wireless-AC 9560 module with an advanced Wi-Fi 802.11 ac Wave2 standard that brings speeds of up to 1.734 Gbps and Bluetooth 5.0.

Dragon centre
Clever software package that gives you an ultimate control over motherboard. Enjoy user friendly interface, create profiles for various tasks or just keep an eye on the performance .

Features:
- 2x PCI Express x16 3.0 bus with Steel Armor slot protection
- 2x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 4000 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 2x M2.SSD NVMe key slots support M2.SSD cards with up to 32 Gb/s throughput
- Intel Optane memory ready
- Easy troubleshooting with Debug LEDs
- Gold-plated audio connectors

Input/output connectors:
- Separate PS/2 gaming port for mouse and keyboard
- HDMI and DisplayPort video output (requires integrated GPU on chip)
- Gigabit LAN port with Intel Gaming LAN technology for online gaming
- 2x reversible USB type-C 3.1 Gen. 2 (up to 10 Gb/s)
- 1x full-size USB type-A 3.1 Gen. 2 (up to 10 Gb/s)
- 8x full-size USB type-A 3.1 Gen. 1 (up to 5 Gb/s)
- 4x USB 2.0
- S/PDIF optical audio
- 7.1 analog audio
