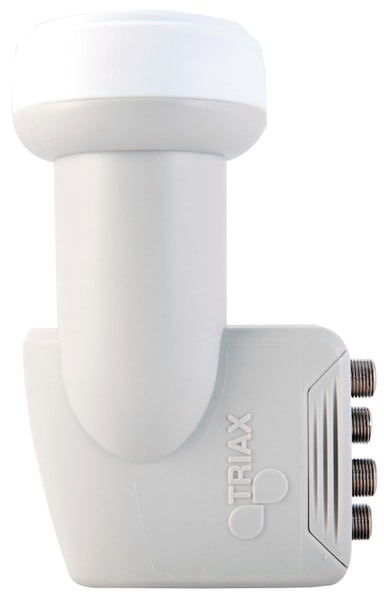

Triax Quad LNB

Universal Quad LNB med full täckning för KU-band, både analog och digital mottagning. Hög effekt och låg strömförbrukning.

RF, input:
Input low frequency band 10.7 - 11.7 GHz
Input high frequency band 11.7 - 12.75 GHz
Low Frequency band 9.75 GHz
High frequency band 10.6 GHz
Feed Horn F / D @ 11.7 0.615 GHz

IF output:
Output frequency low band 950 - 1950MHz
Output frequency high band 1100 - 2150MHz
Connector type 4 x F-con
Local oscillator:
Frequency low band 9.75 GHz
Frequency high band 10.6 GHz
Frequency stability (-40 ~ +60 °C) ± 2.1:1MHz
Phase noise @ room temperature - 1 kHz - 50dBc/Hz
Phase noise @ room temperature - 10 kHz - 75dBc/Hz
Phase noise @ room temperature - 100 kHz - 95dBc/Hz

Elektrisk:
Conversion gain (typ.) 64 dB
Conversion gain (max.) 50 dB
Gain variation (over operating band) 5 p-p (typ.) dB
Gain flatness (across 26 MHz segm) ± 1.0 (typ.) dB
Spurious level - 60 (max.)dBm
Noise figure typ. 0.3 dB
Noise figure max. 0.3 dB
Image rejection (min.) 40 dB
Cross polarization isolation 25 typ. dB
DC power consumption (typ.) 180mA
Operating voltage vertical 15.5 ~ 21.0V/DC
Operating voltage horizontal 10.5 ~ 14.5V/DC
Switching position none
Switching low band 0.0 Hz
Switching high band 22 (± 4)kHz
Operation temperature -40 ~ +60 grader
