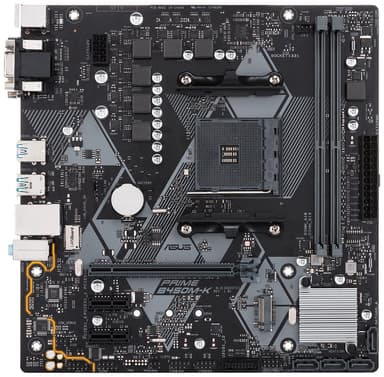

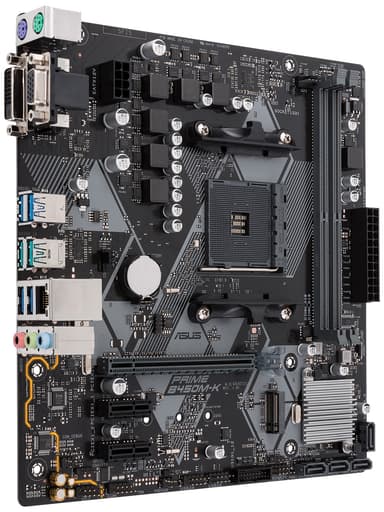

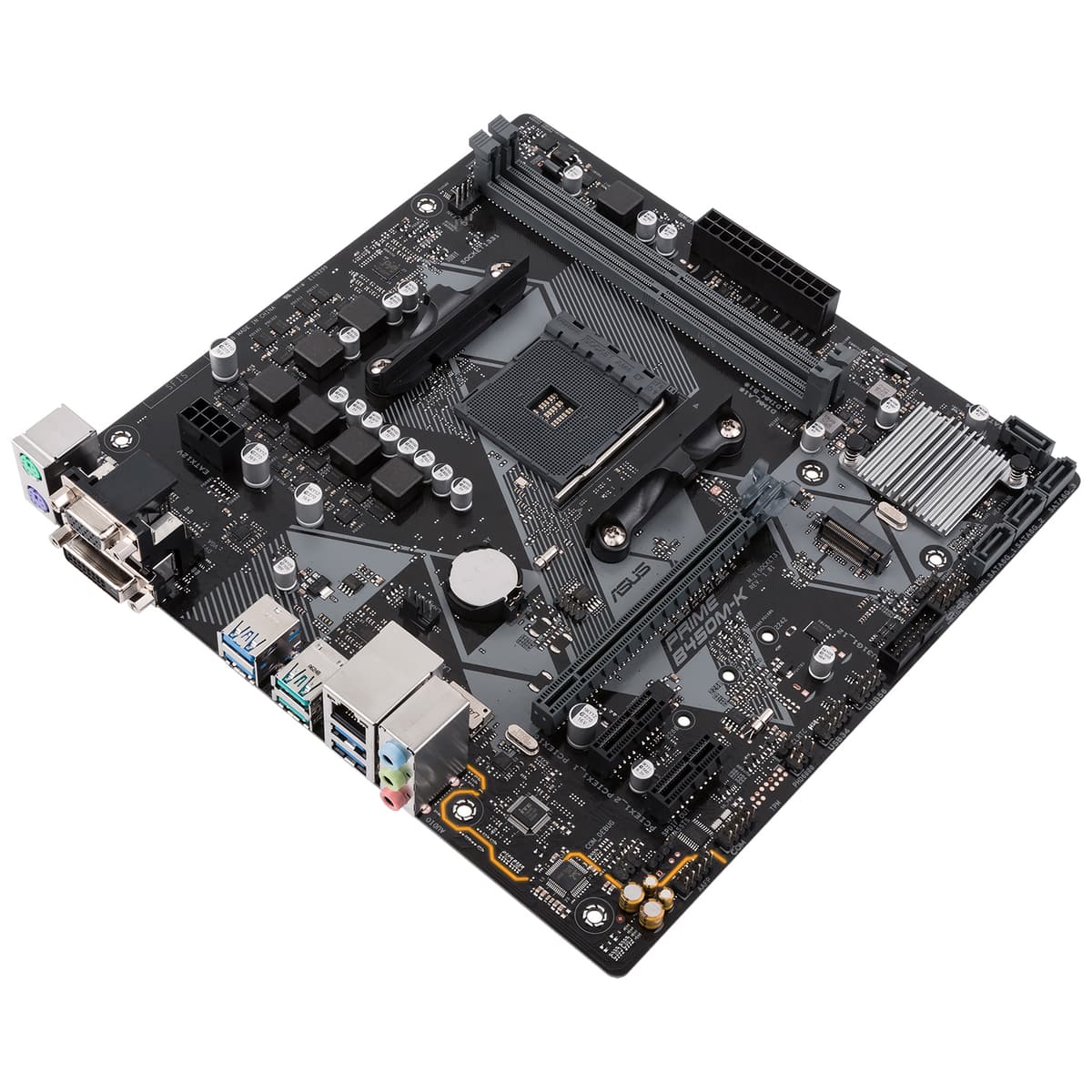

Asus Prime B450M-K moderkort

Build a compact yet powerful workstation or gaming PC with Asus Prime B450M-K motherboard. The Micro ATX-format motherboard has AM4 socket for AMD Ryzen processors. Enjoy lag-free network traffic and crisp audio with 7.1 surround sound output. The motherboard lets you install up to 64 GB fast DDR4 RAM and super-responsive M2.SSD storage. Connect a broad range of peripherals on multiple video outputs or fast USB 3.1 and 3.0 devices.

Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).

Audio
The board uses Realtek ALC887 audio codec to deliver crisp 7.1 surround sound with minimized noise.

Cooling
Onboard thermal sensors and advanced fan control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.

Features:
- 1x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 2x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3466 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M.2 SSD key slot support M2.2280, M2.22110, M2.2260 and M2.2242 SSD cards with up to 32 Gb/s throughput
- Illuminated LED trace path around audio components and PCIe slot

Input/output connectors:
- 2x PS/2 port for mouse and keyboard
- DVI and VGA video output (requires integrated GPU on chip)
- Gigabit LAN port
- 2x full-size USB 3.1 ports (up to 10 Gb/s)
- 4x full-size USB 3.0 ports (up to 5 Gb/s)
- 3x 3.5 mm mini-jacks
