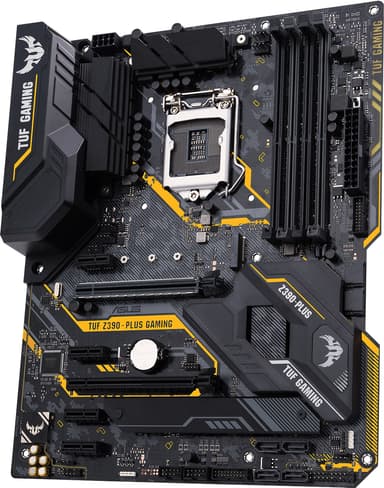

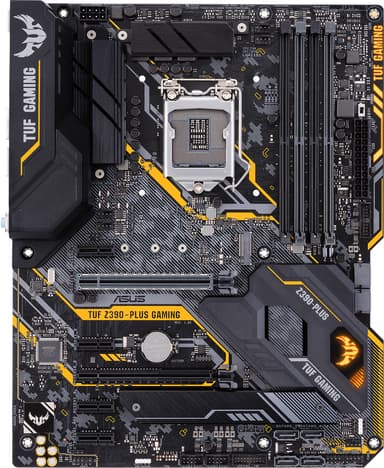

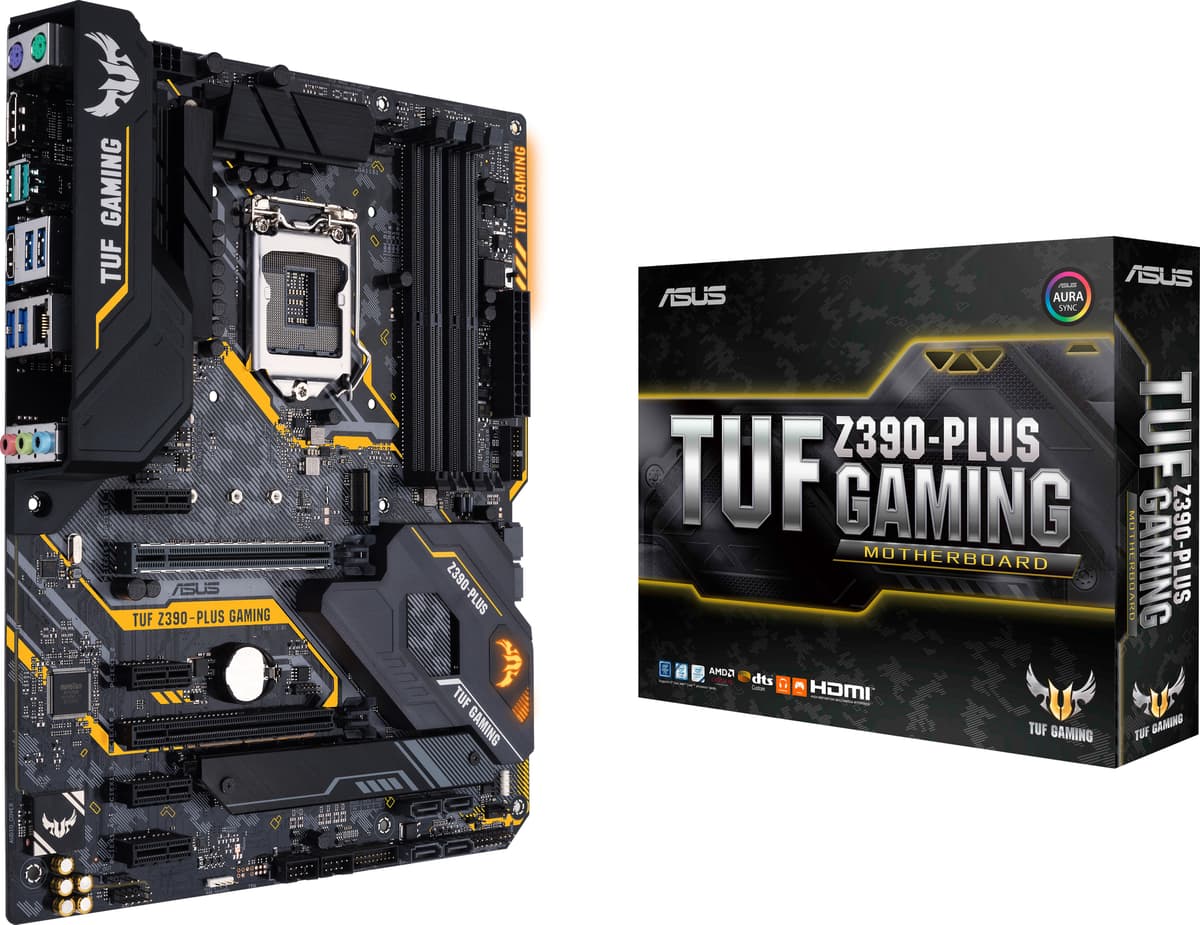

Asus TUF Z390 Plus Gaming moderkort

Upgrade your PC to the 9th generation of Intel CPUs with the Asus TUF Z390 Plus Gaming motherboard. Thanks to a feature set that rivals the high end motherboards you can easily use this board to build a proper gaming battlestation as well as a high end workstation. With M.2 support you have access to super fast storage for efficient workflow and RGB LEDs allow for infinite customization.

Socket
The motherboard supports 9th generation Intel Core, Pentium and Celeron processors with LGA1151 socket.

DTS Custom audio
The board uses 8-channel DTS Custom audio with Realtek S1200A codec that offers superb signal-to-noise ratio for absolutely flawless audio quality.

Aura Sync RGB lighting
Choose from millions of colors and diverse effects to light up the motherboard and make your PC even more visually attractive - ideal for cases with transparent sides or windows.

Cooling
Onboard thermal sensors, dedicated water pump header and advanced Fan Xpert 4 control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.

Features:
- 2x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 4x PCI Express x1 3.0 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 4266 MHz and 64 GB total capacity
- 6 SATA connectors with 6 Gb/s throughput
- 2x M2.SSD NVMe key slots support M2.SSD cards with up to 32 Gb/s throughput
- Intel Optane memory ready

Input/output connectors:
- Dedicated PS/2 ports for mouse and keyboard
- HDMI and DisplayPort video output
- Gigabit LAN port
- 2x USB 3.1 (up to 10 Gb/s)
- 4x USB 3.0 (up to 5 Gb/s)
- 3x 3.5 mm mini-jack
