Gigabyte X570 Aorus Elite moderkort

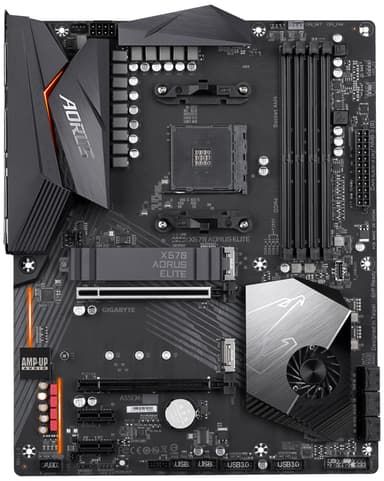

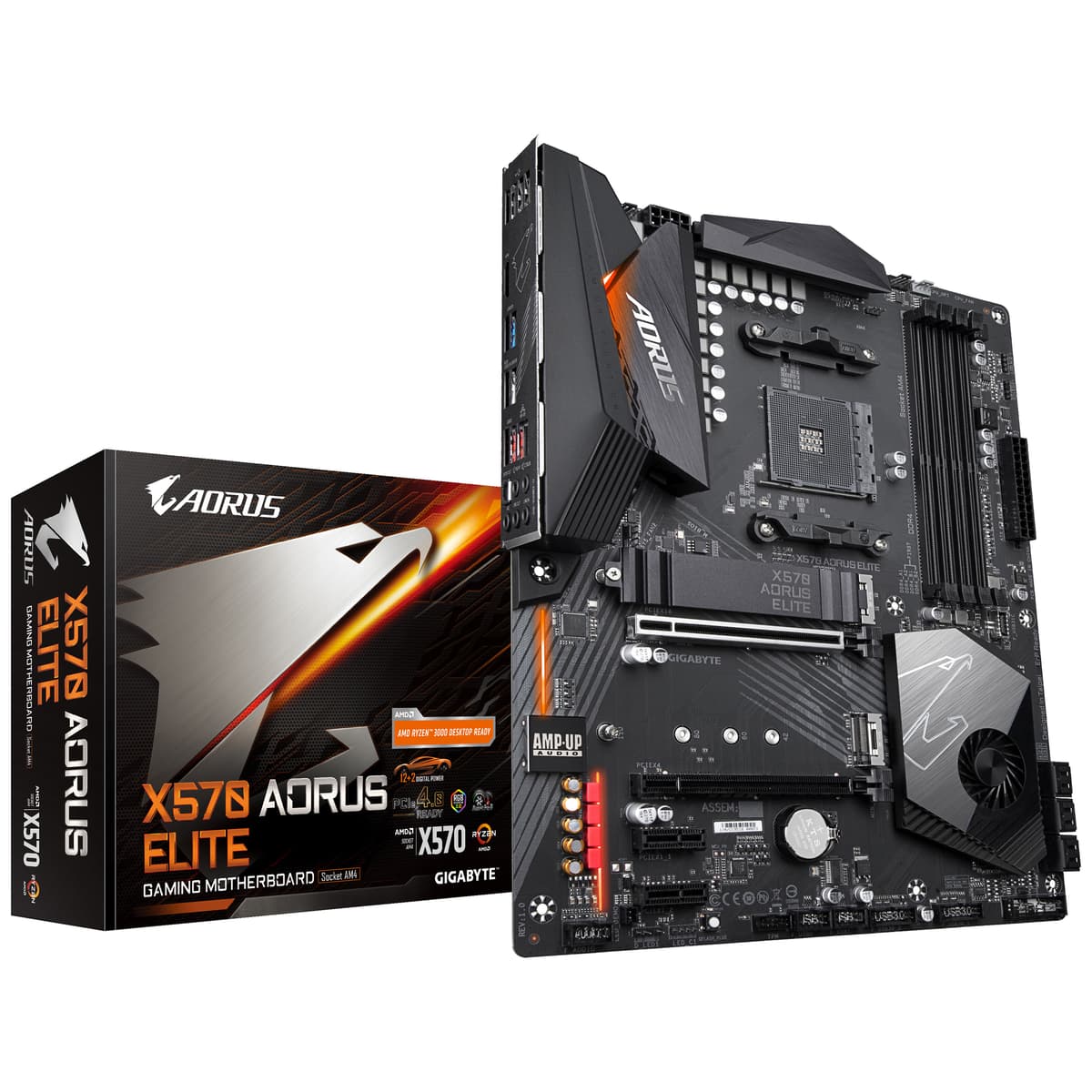

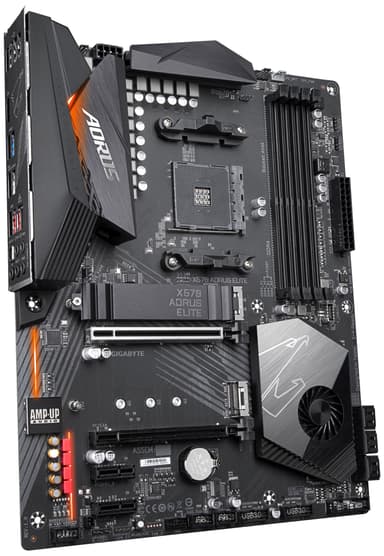

Gigabyte X570 Aorus Elite motherboard lets you build a powerful gaming PC with advanced technologies and stylish RGB Fusion 2 lighting. The ATX-format board features AMD AM4 socket and supports multi-GPU setup. You can install up to 128 GB fast DDR4 RAM and super-responsive M.2 PCIe NVMe SSD storage.

Socket
The motherboard supports AMD Ryzen 2nd and 3rd generation processors through AM4 socket.

Multi-GPU setup
You can install multiple GPU for outstanding visuals via AMD Quad-GPU Crossfire or 2-Way AD Crossfire technologies.

Fusion 2.0 RGB lighting
Choose from over 16.7 million light colors as well as several light patterns and synchronize them with your other Fusion RGB components for an astonishing light show.

Smart Fan 5
There are plenty of fan headers placed conveniently on the board for easy connection of four hybrid fan/ water pump connectors and six temperature sensors.

Easy BIOS change
You do not need to install CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Simply download and save a new BIOS file on a USB flash drive, stick it to labeled BIOS USB port and pres Q-Flash Plus button to start the process.

High-end audio
The Aorus motherboard features a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors that provide thick bass, clear high frequencies, and clean sound reproduction. The Aorus AMP-UP technology with audio noise guard makes sure there is no obtrusive noise pollution at the PCB level, so you can get the cleanest sound output of an audiophile grade.

Features:
- 4x PCI Express x16 3.0 bus
- 2x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 128 GB total capacity
- 6x SATA connectors with 6 Gb/s throughput with easy RAID
- 2x M2.SSD NVMe key slots support M2.SSD cards with up to 32 Gb/s throughput
- Intel Gigabit LAN with cFosSpeed Internet Accelerator
- Voltage, temperature, water coolinf flow rate, fan speed, overheating detection for safe control

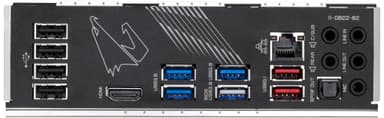

Input/output connectors:
- Gigabit LAN port with Realtek 8118 Gaming LAN utility for online gaming
- 1x reversible USB type-C 3.2 Gen2 (up to 10 Gb/s)
- 2x full-size USB type-A 3.2 Gen. 2 (up to 10 Gb/s)
- 8x full-size USB type-A 3.2 Gen. 1 (up to 5 Gb/s)
- 8x USB 2.0
- 5x audio jacks
- 1x optical audio S/PDIF out
- Realtek ALC1200 codec for up to 5.1 HD analog audio
