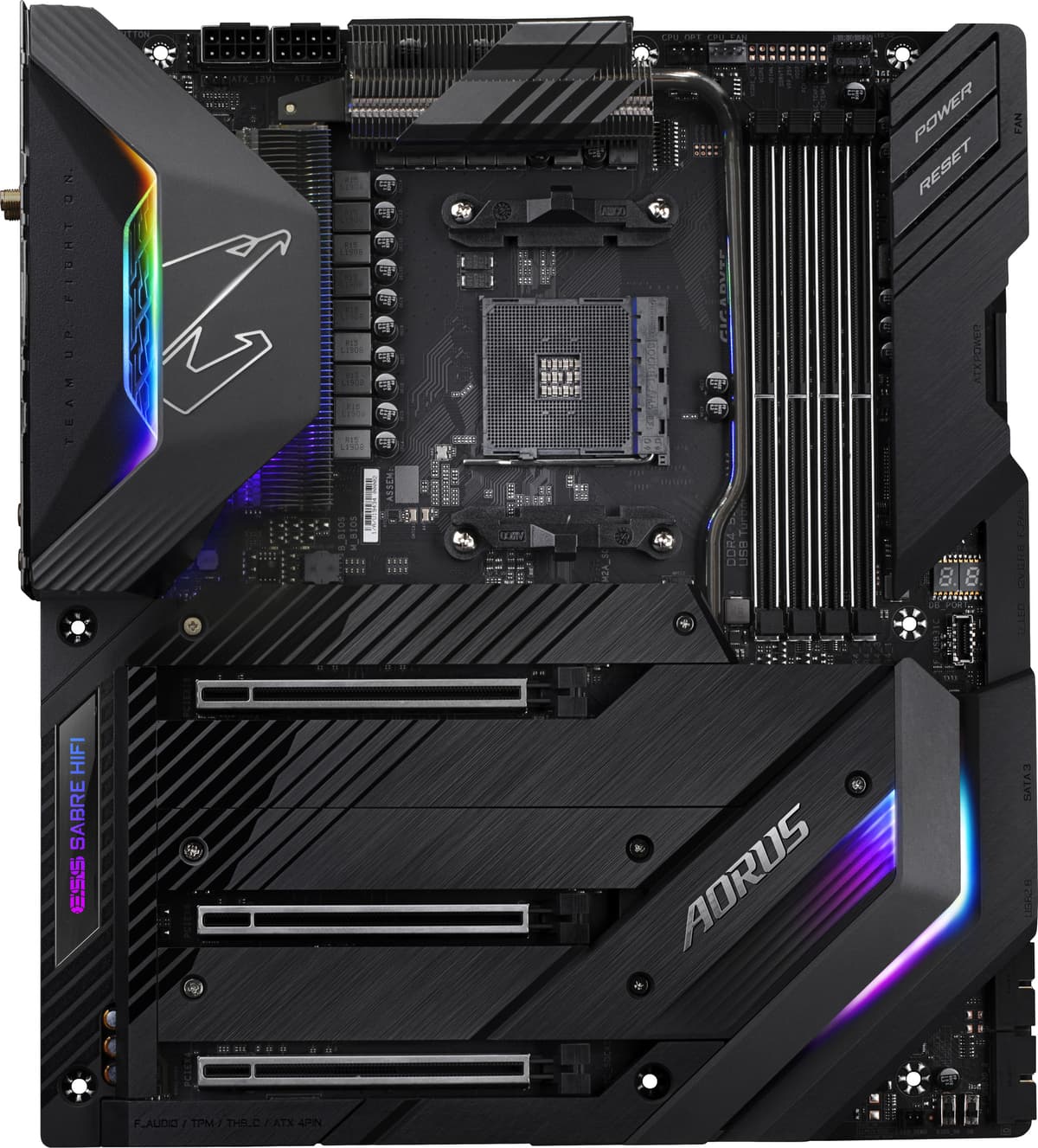

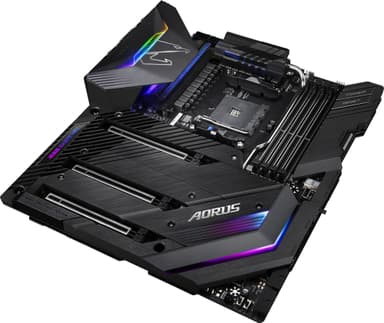

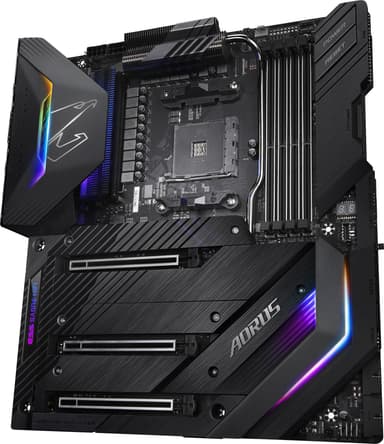

Gigabyte X570 Aorus Xtreme moderkort

Build a powerful gaming or workstation PC with the Gigabyte X570 Aorus Xtreme motherboard. Made for heavy load, a system with this board can comfortably run the Ryzen 9 line of processors without any issues With a sleek look, completely silent performance and RGB customization you can fit this board into any high-end build.

Socket
The motherboard sports an AMD AM4 socket for 2nd/3rd generation AMD Ryzen processors and 1st/2nd generation AMD Ryzen with Vega graphics.

Multi GPU support
PCIe slots allow for Nvidia graphics of up to Quad-GPU SLI configuration or up to quadruple AMD Radeon graphics for a AMD CrossFire configuration.

RGB Fusion 2.0
Customize your RGB lights with Gigabyte RGB Fusion 2.0 and have all your components and peripherals synchronized.

Dual BIOS
With the Gigabyte dual BIOS, you will never have to worry again about BIOS updates or overclocking settings. With a flick of a switch, you have access to two separate BIOS chips.

Passive cooling
Thanks to the extensive cooling solutions the Gigabyte X570 Aorus Xtreme motherboard does not need an active chipset cooling, allowing for silent performance.

Audio
The high-end onboard audio offers amazing sound quality, and with Japanese made capacitors the audio tends to be warmer.

PCIe 4.0
With the new generation of PCIe, transfer speeds have increased up to 64 GB/s so you are able to get the most of all of your PCIe cards and devices.

Features
- E-ATX form factor
- 3x PCIe x16 4.0 bus
- 4x DIMM memory slots with dual channel support, up to 4400 MHz up to 128 GB of capacity
- 6x SATA III connector
- 3x M.2 slot

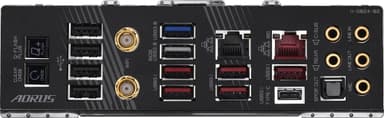

Connectivity
- Q-Flash Plus button
- Clear CMOS button
- 1x reversible USB-C 3.1
- 5x full-size USB 3.1
- 2x full-size USB 3.0
- 4x full-size USB 2.0
- 1 x 10G LAN port
- 1x Gigabit LAN port
- 2x SMA antenna connectors
- 1 x optical S/PDIF Out audio connector
- 5 x 3.5 mm gold plated audio jacks
- WiFi 6 (WiFi-ax)
