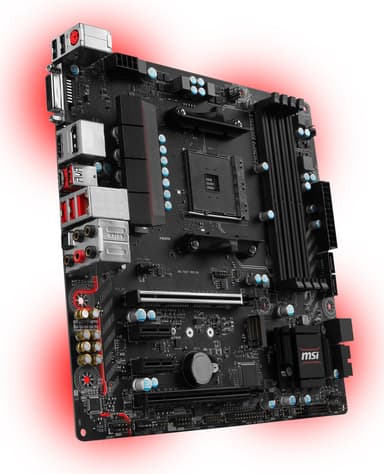

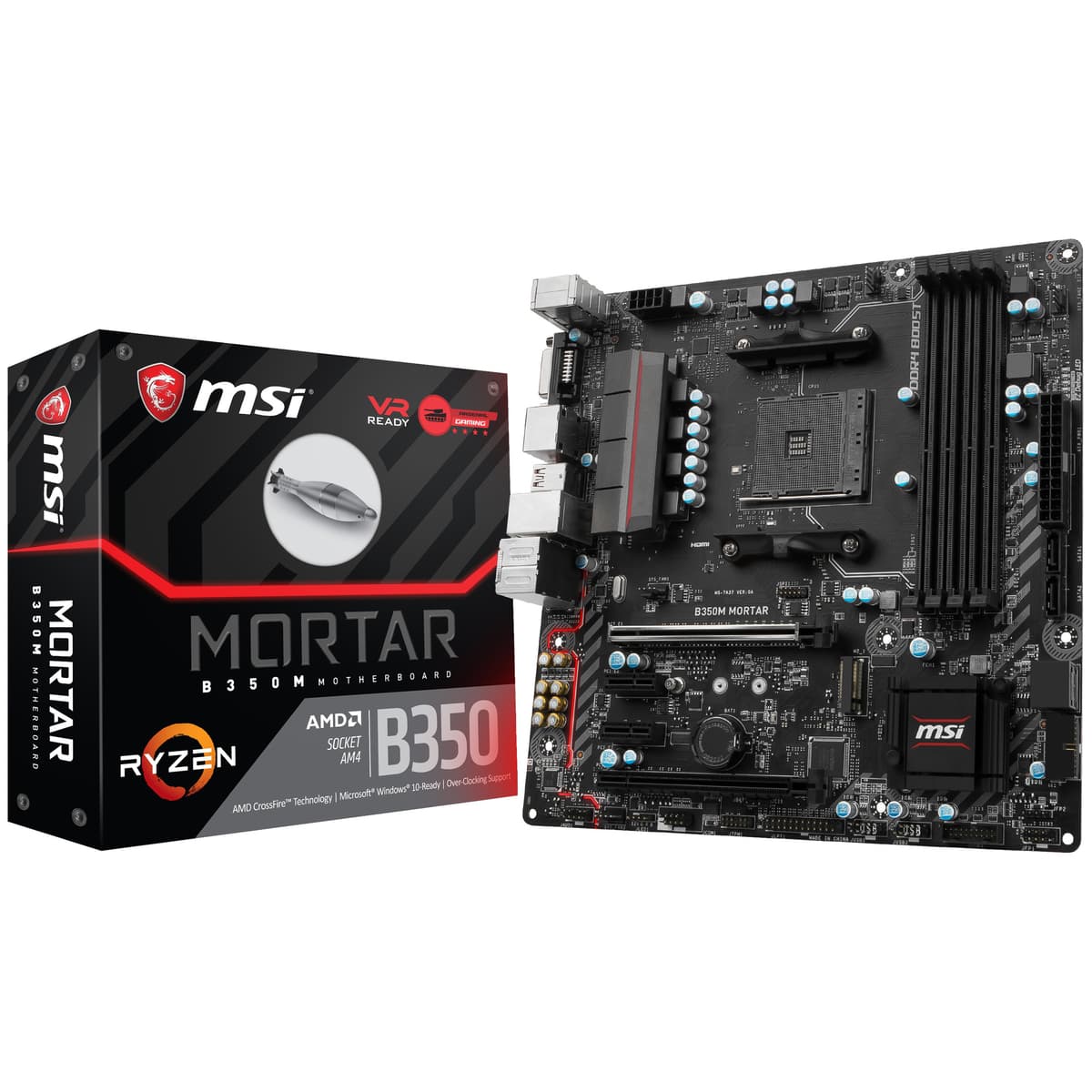

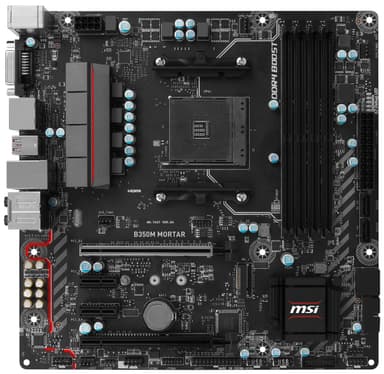

MSI B350M Mortar moderkort

MSI B350M Mortar motherboard lets you fit poweful components into a compact chassis. This Micro ATX-format motherboard has AM4 socket for AMD Ryzen or 7th gen. A-series and Athlon processors, support for dual AMD CrossFire GPU and red LED lighting. You can install up to 64 GB fast DDR4 RAM as well as enhance the responsiveness of your setup with super fast M2.SSD storage. Expansive wired connectivity lets you hook up a 4K UHD monitor, 7.1 HD audio setup or speedy USB 3.1 devices.

Socket: The motherboard supports AMD Ryzen processors as well as 7th gen. AMD A-series and Athlon processors through AM4 socket.

Audio Boost: The board includes custom audio module with HD audio processor and supports 7.1 channel HD audio output.

Cooling: Thanks to four fully controllable fan headers, the board and all components can be kept cool even under heavy load, and you can design and implement a custom cooling solution easily.

Features:
- 1x PCI Express x16 3.0 bus with Steel Armor slot protection
- 1x PCI Express x16 2.0 bus
- 2x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3200 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M2.SSD NVMe key slot supports M2.2280, M2.2260 and M2.2242 SSD cards with up to 32 Gb/s throughput
- Red LED light stripes on the back side
- Gold-plated audio jacks

Input/output connectors:
- Combined PS/2 gaming port for mouse or keyboard
- DisplayPort, DVI and HDMI video output
- Gaming Gigabit LAN port with game data prioritization and LAN Protect surge protection
- 1x reversible USB type-C 3.1 Gen.1 (up to 5 Gb/s)
- 3x full-size USB type-A 3.1 Gen.1 (up to 5 Gb/s)
- 2x USB 2.0
- S/PDIF optical audio
- 7.1 analog audio
