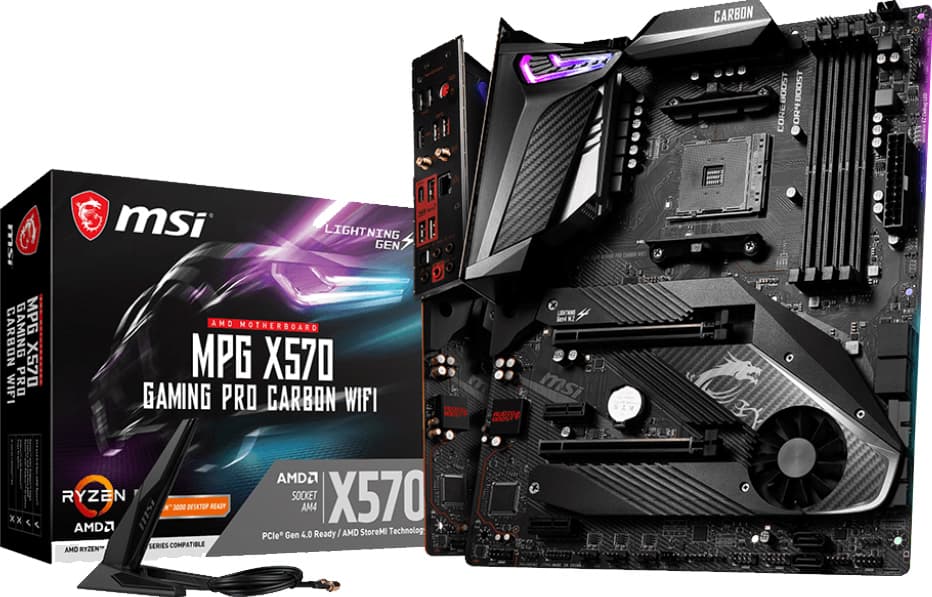

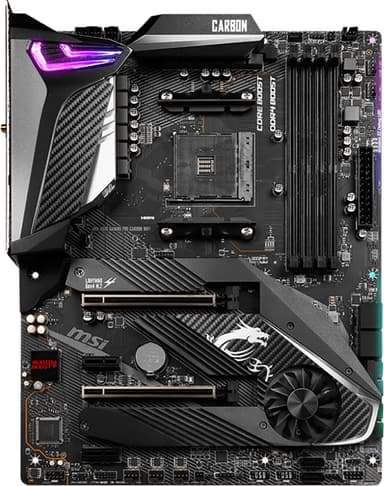

MSI MPG X570 Gaming Pro Carbon WiFi moderkort

The MSI MPG X570 Gaming Pro Carbon WiFi motherboard fits into any work or battle station. With its high-quality PCB and Lightning Gen4 support your applications and games will load at lightning speeds and your workload efficiency will soar. The classy design looks great in any type of build and offers apt customization with MSI Mystic Light support. Audio Boost 4 offers high end sound quality, so you can enjoy music, movies or games sounding the best they possibly can.

Socket
The motherboard sports an AMD AM4 socket for 2nd/3rd generation AMD Ryzen processors and 1st/2nd generation AMD Ryzen with Vega graphics.

Multi GPU support
2 PCIe slots support dual AMD Radeon graphics technology for a 2-way AMD CrossFire configuration.

Mystic Light
Choose from over 16.7 millions of colors and 17 effects for amazing lighting patterns on the motherboard and synchronize it with your other Mystic Light components. You can manage the entire lighting for the PC from the Mystic Light app for your mobile device.

Cooling
The MSI Mpg X570 Gaming Pro Carbon WiFi motherboard uses an active cooling for the X570 chipset and VRM heatsinks for advanced overclocking capabilities.

PCIe 4.0
With the new generation of PCIe the transfer speeds have increased up to 64 GB/s so you are able to get the most of all of your PCIe cards and devices.

Server-grade PCB weave
With server-grade PCB weave the transfer speeds are up to 30% higher, which is required for the PCIe 4.0 interface to reach its full potential

Audio Boost 4
The board includes custom audio module with dedicated audio processor and supports 7.1 channel HD audio output. Nahimic 3 sound enhancement ensures studio-grade acoustics.

Features
- ATX form factor
- Intel Wi-Fi 6 AX200 and Bluetooth pre-installed in M2_WIFI1 (Key-E) slot
- Support for RAID 0/1/10
- 7.1-channel high definition audio
- 2x PCIe x16 4.0 bus
- 2x PCIe x1 4.0 bus
- 4x DIMM memory slots with dual channel support, up to 4400 MHz up to 128 GB of capacity
- 6x SATA III connector
- 2x M.2 slot

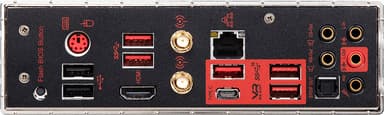

Connectivity
- 1x Dedicated PS/2 port for mouse or keyboard
- 1x HDMI 1.4 port
- 2x Wi-Fi antenna connectors
- 1x BIOS Flash button
- 1x Intel I211AT Gigabit LAN controller
- 5x 3.5 mm audio jack
- 1x Optical SPDI/F Out
- 2x full-size USB 2.0
- 2x full-size USB 3.0
- 3x full-size USB 3.1
- 1x reversible USB-C 3.1

Included in the package
- MSI Mpg X570 Gaming Pro Carbon WiFi motherboard
- Wi-Fi Antenna
- MSI case badge1 to 2 RGB LED extension Y cable
- Rainbow RGB LED extension cable
- Corsair RGB LED extension cable
- 2x SATA cable
- Driver DVD
