Asus ROG Strix B450-I Gaming moderkort
Varukod 12382
Kort om produkten
Become the gaming pro with Asus ROG Strix B450-I Gaming motherboard. Build a super compact, yet powerful gaming PC with support for 1st and 2nd generation of AMD Ryzen processors, surround sound, fast WiFi-ac and adaptive Aura Sync RGB lighting.
Läs mer om produktenTeknisk specifikation
- Mini ITX form, AMD AM4 socket
- SupremeFX sound, WiFi-ac
- Aura Sync RGB lighting
Produktbeskrivning

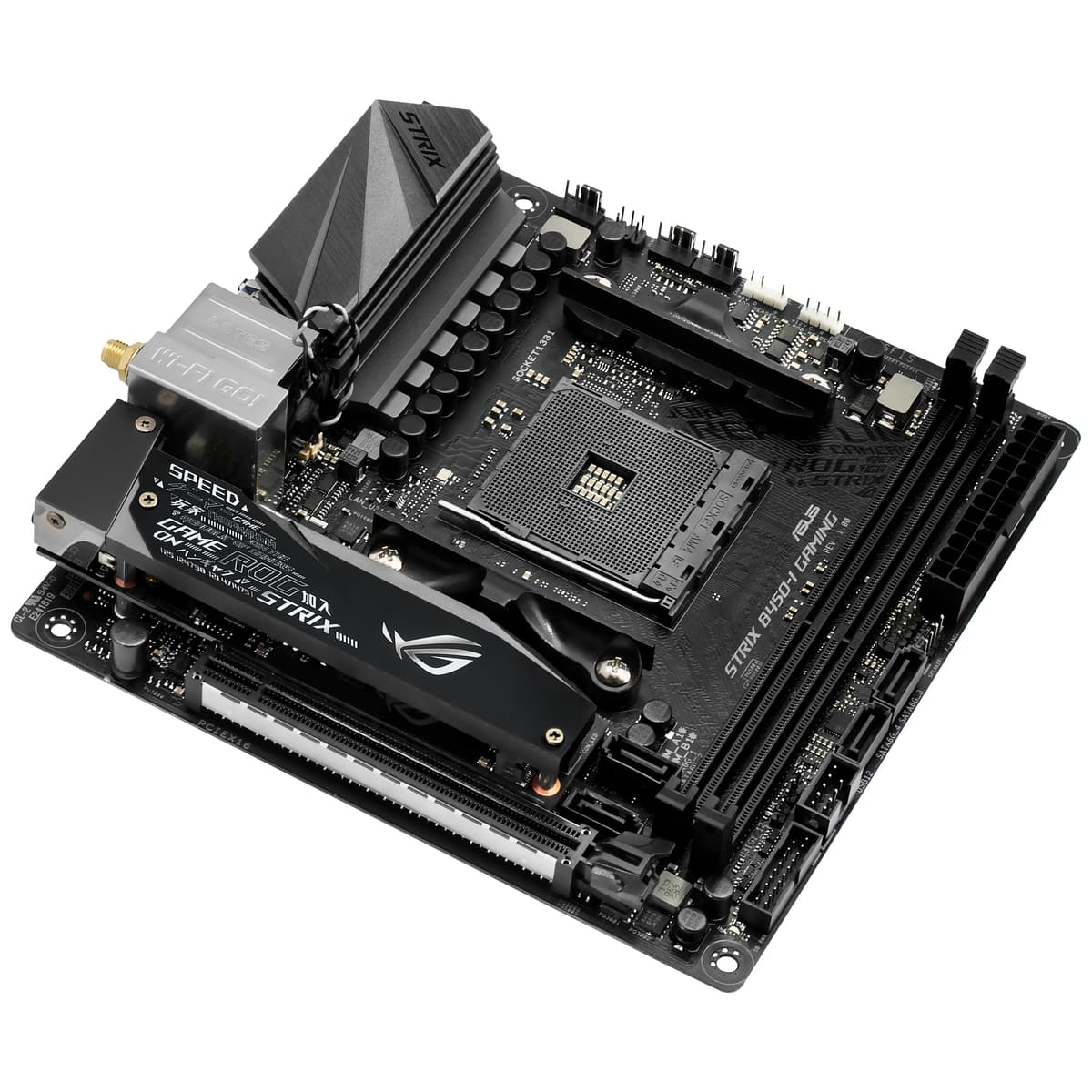

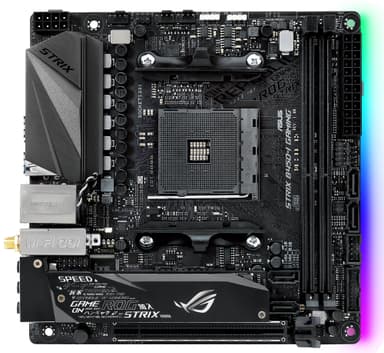

Professional gamers need professional equipment. Asus ROG Strix B450-I Gaming motherboard is that kind of equipment. Build a compact gaming machine that fits into even limited spaces, but still delivers outstanding performance thanks to AM4 socket that fits 1st and 2nd generation of AMD Ryzen processors. You can also install up to 32 GB fast DDR4 RAM and super-responsive M2.SSD storage. And with innovative riser card design, the M.2 socket with heatsink and the audio module are placed above the board, ensuring full-on power comparable with larger boards.
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Aura Sync RGB lighting

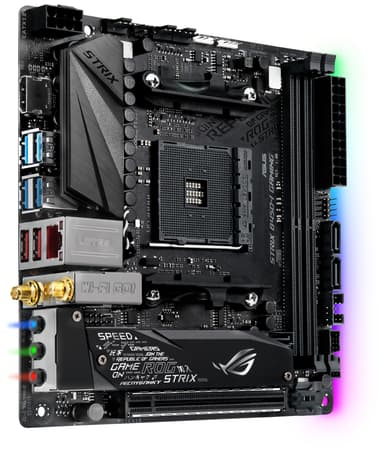

Choose from millions of colors and diverse effects to light up the motherboard and make your PC even more visually attractive - ideal for cases with transparent sides or windows.
Cooling
The motherboard features dedicated header for closed-circuit water cooling systems, ensuring stability under heavy load.
SupremeFX sound
The board uses custom SupremeFX S1220A audio codec with class-leading signal-to-noise ratio to deliver absolutely pristine sound. Backlit audio jacks with color-coded light let you plug in your speakers or headset on the first try, even in the dark.
Wireless connectivity

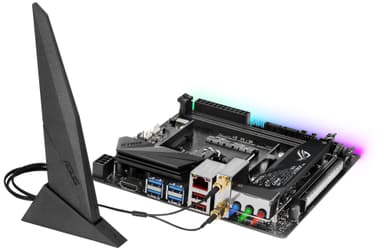

Thanks to onboard Asus GO! module and external antenna, you get dual band WiFi-ac connectivity with MU-MIMO technology that lets you enjoy lag-free gaming and streaming of Full HD media over the wireless. And you can also hook up your Bluetooth accessories with Bluetooth 5.0.
Features
- 1x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 4 SATA connectors with 6 Gb/s throughput
- 2 DIMM memory slots support dual-channel DDR4 modules up to 3600 MHz and 32 GB total capacity
- 1x M.2 SSD NVMe key slot supports M.2 SSD cards with up to 32 Gb/s throughput

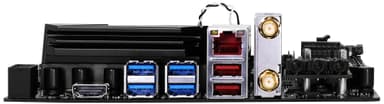

Input/output connectors
- HDMI video output (requires processor with onboard graphics)
- Gigabit Ethernet LAN port with anti-surge LANGuard technology
- 2x full-size USB type-A 3.1 (up to 10 Gb/s)
- 4x USB 3.0 (up to 5 Gb/s)
- 3x 3.5 mm audio mini-jack
- 2x WiFi antenna sockets
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Aura Sync RGB lighting
Choose from millions of colors and diverse effects to light up the motherboard and make your PC even more visually attractive - ideal for cases with transparent sides or windows.
Cooling
The motherboard features dedicated header for closed-circuit water cooling systems, ensuring stability under heavy load.
SupremeFX sound
The board uses custom SupremeFX S1220A audio codec with class-leading signal-to-noise ratio to deliver absolutely pristine sound. Backlit audio jacks with color-coded light let you plug in your speakers or headset on the first try, even in the dark.
Wireless connectivity
Thanks to onboard Asus GO! module and external antenna, you get dual band WiFi-ac connectivity with MU-MIMO technology that lets you enjoy lag-free gaming and streaming of Full HD media over the wireless. And you can also hook up your Bluetooth accessories with Bluetooth 5.0.
Features
- 1x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 4 SATA connectors with 6 Gb/s throughput
- 2 DIMM memory slots support dual-channel DDR4 modules up to 3600 MHz and 32 GB total capacity
- 1x M.2 SSD NVMe key slot supports M.2 SSD cards with up to 32 Gb/s throughput
Input/output connectors
- HDMI video output (requires processor with onboard graphics)
- Gigabit Ethernet LAN port with anti-surge LANGuard technology
- 2x full-size USB type-A 3.1 (up to 10 Gb/s)
- 4x USB 3.0 (up to 5 Gb/s)
- 3x 3.5 mm audio mini-jack
- 2x WiFi antenna sockets
Specifikationer
Mått & vikt
Bredd (cm) 17 Djup (cm) 17 Höjd (inkl. emballage) 98,0 mm Bredd (inkl. emballage) 18,6 cm Djup (inkl. emballage) 23,0 cm Vikt (inkl. emballage) 1,194 kg Nyckelspecifikation
Formfaktor Mini ITX Modellnamn Asus ROG Strix B450-I Gaming Chipset AMD B450 CPU socket AMD AM4 Minne (typ) DDR4 RAM - Portar (totalt) 2 Minnesstöd (MHz) 3600 (OC), 3533 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC, unbuffered memory; Dual-Channel Memory Architecture RAM - Maximalt stöd (GB) 32 CrossFire Nej SLI Support Nej Modellbeskrivning
Produkttyp Moderkort (AMD) Formfaktor Mini ITX Modellnamn Asus ROG Strix B450-I Gaming EAN-kod 4718017081115 Tillverkarens artikelnummer 90MB0Z50-M0EAY0 Processor
Chipset-familj för moderkort AMD Chipset AMD B450 CPU socket AMD AM4 Compatible CPUs AMD Ryzen Minne/RAM
Minne (typ) DDR4 RAM - Portar (totalt) 2 Minnesstöd (MHz) 3600 (OC), 3533 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC, unbuffered memory; Dual-Channel Memory Architecture RAM - Maximalt stöd (GB) 32 Grafik
CrossFire Nej SLI Support Nej Inbyggt LAN
WLAN (Wireless Local Area Network) Ja Maximal hastighet 10/100/1000 Interna anslutningar
USB 2.0 (Interna) 2 USB 3.0 (Interna) 2 SATA strömkontakter 4 x SATA 6Gb/s M.2 slot (Totalt) 1 Portar för utvidgning
PCI-Express 1x (Totalt) 0 Ljud
Typ av ljudkort ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A Externa anslutningar
HDMI-anslutning 1 DisplayPort 0 DVI 0 VGA 0 Nätverksanslutning (RJ45) 1 S/PDIF-utgång 0 PS/2 0
