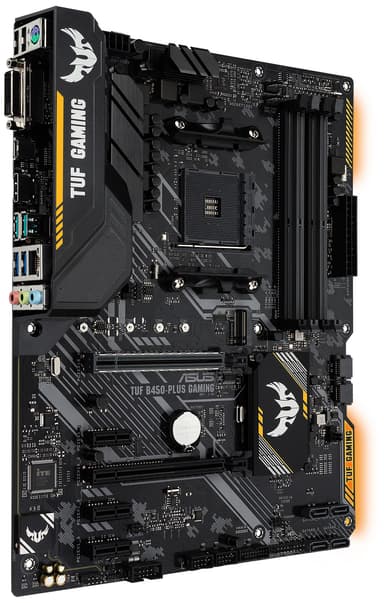

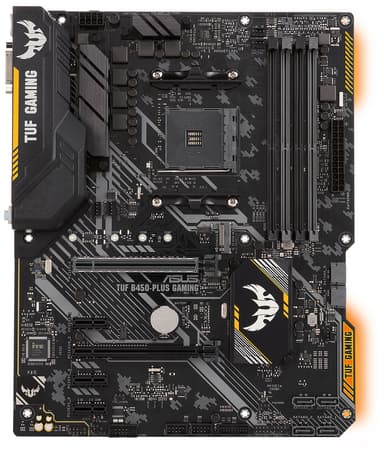

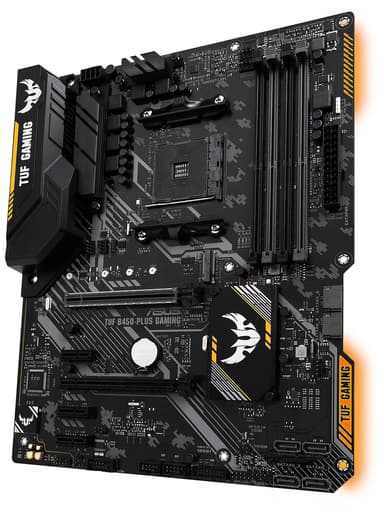

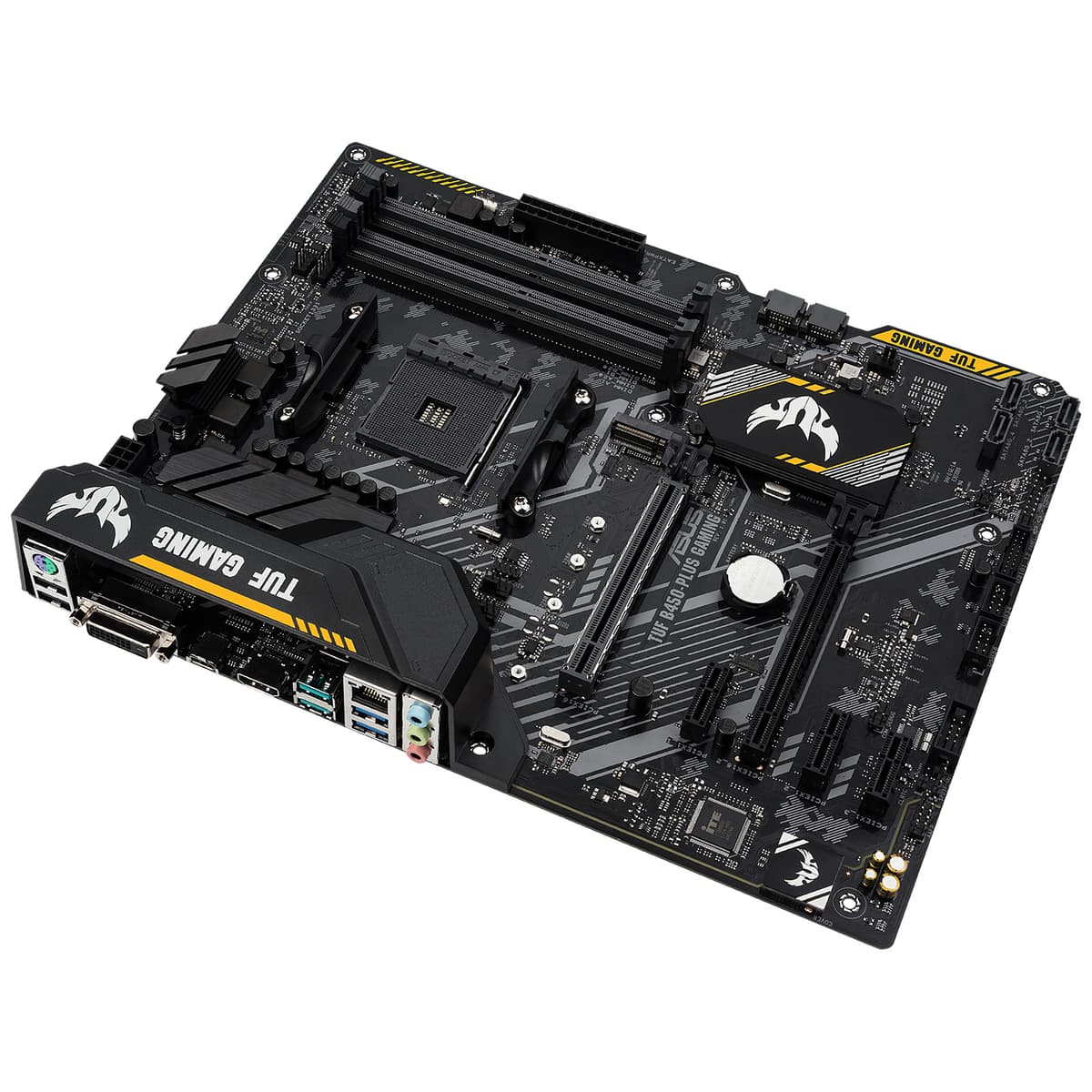

Asus TUF B450-Plus Gaming moderkort
Varukod 12381
Kort om produkten
Pro gaming requires pro approach. Asus TUF B450-Plus Gaming motherboard allows you to build a powerful PC with support for 2nd gen. AMD Ryzen processors, dual AMD GPU setup, DTS Custom audio and customizable Aura Sync RGB lighting.
Se alla funktionerSpecifikationer
- ATX form, AMD AM4 socket
- Dual GPU support, DTS Custom audio
- Aura Sync RGB lighting
Leverantörens EcoVadis score
Läs mer om EcoVadisMer om produkten
Turn your computer into an unstoppable gaming machine with Asus TUF B450-Plus Gaming motherboard. The ATX format board features AM4 socket for 1st and 2nd generation AMD Ryzen processors, supports dual AMD GPU setup and up to 64 GB DDR4 RAM. Plug in super fast M.2 SSD storage, hook up your gaming headset to DTS Custom audio and connect speedy USB 3.1 devices and accessories.
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Dual GPU setup
Two PCIe x16 slots let you install dual AMD graphics in CrossFireX configuration, enhancing your PC s gaming potential even further.
DTS Custom audio
The board uses 8-channel DTS Custom audio with Realtek ALC887 codec for crisp and distinctive sound.
Aura Sync RGB lighting
Choose from millions of colors and diverse effects to light up the motherboard and make your PC even more visually attractive - ideal for cases with transparent sides or windows.
Cooling
Onboard thermal sensors, dedicated water pump header and advanced Fan Xpert 4 control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.
Features
- 2x PCI Express x16 3.0 bus (one with SafeSlot reinforcement)
- 3x PCI Express x1 3.0 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3466 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M.2 SSD NVMe key slot supports M.2 SSD cards with up to 32 Gb/s throughput
- Intel Optane memory ready
Input/output connectors
- Combined PS/2 port for mouse/keyboard
- HDMI and DVI video output (requires integrated GPU on chip)
- Gigabit LAN port
- 2x USB 3.1 (up to 10 Gb/s)
- 2x USB 3.0 (up to 5 Gb/s)
- 1x reversible USB-C 3.0 (up to 5 Gb/s)
- 2x USB 2.0
- 3x 3.5 mm mini-jack
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Dual GPU setup
Two PCIe x16 slots let you install dual AMD graphics in CrossFireX configuration, enhancing your PC s gaming potential even further.
DTS Custom audio
The board uses 8-channel DTS Custom audio with Realtek ALC887 codec for crisp and distinctive sound.
Aura Sync RGB lighting
Choose from millions of colors and diverse effects to light up the motherboard and make your PC even more visually attractive - ideal for cases with transparent sides or windows.
Cooling
Onboard thermal sensors, dedicated water pump header and advanced Fan Xpert 4 control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.
Features
- 2x PCI Express x16 3.0 bus (one with SafeSlot reinforcement)
- 3x PCI Express x1 3.0 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3466 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M.2 SSD NVMe key slot supports M.2 SSD cards with up to 32 Gb/s throughput
- Intel Optane memory ready
Input/output connectors
- Combined PS/2 port for mouse/keyboard
- HDMI and DVI video output (requires integrated GPU on chip)
- Gigabit LAN port
- 2x USB 3.1 (up to 10 Gb/s)
- 2x USB 3.0 (up to 5 Gb/s)
- 1x reversible USB-C 3.0 (up to 5 Gb/s)
- 2x USB 2.0
- 3x 3.5 mm mini-jack
Specifikationer
Mått & vikt
Bredd (cm) 30.5 Djup (cm) 24.4 Höjd (inkl. emballage) 58,0 mm Bredd (inkl. emballage) 27,2 cm Djup (inkl. emballage) 33,6 cm Vikt (inkl. emballage) 1,174 kg Nyckelspecifikation
Formfaktor ATX Modellnamn Asus TUF B450-Plus Gaming Chipset AMD B450 CPU socket AMD AM4 Minne (typ) DDR4 RAM - Portar (totalt) 4 Minnesstöd (MHz) 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC, unbuffered memory; Dual-Channel Memory Architecture RAM - Maximalt stöd (GB) 64 CrossFire Ja SLI Support Nej Modellbeskrivning
Produkttyp Moderkort (AMD) Formfaktor ATX Modellnamn Asus TUF B450-Plus Gaming EAN-kod 4718017075947 Tillverkarens artikelnummer 90MB0YM0-M0EAY0 Processor
Chipset-familj för moderkort AMD Chipset AMD B450 CPU socket AMD AM4 Compatible CPUs AMD Ryzen Minne/RAM
Minne (typ) DDR4 RAM - Portar (totalt) 4 Minnesstöd (MHz) 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz non-ECC, unbuffered memory; Dual-Channel Memory Architecture RAM - Maximalt stöd (GB) 64 Grafik
CrossFire Ja SLI Support Nej Inbyggt LAN
WLAN (Wireless Local Area Network) Nej Maximal hastighet 10/100/1000 Interna anslutningar
USB 2.0 (Interna) 4 USB 3.0 (Interna) 2 SATA strömkontakter 4 x SATA 6Gb/s M.2 slot (Totalt) 1 Portar för utvidgning
PCI-Express 1x (Totalt) 1 Ljud
Typ av ljudkort Realtek ALC887-VD2 Externa anslutningar
HDMI-anslutning 1 DisplayPort 0 DVI 1 VGA 0 Nätverksanslutning (RJ45) 1 S/PDIF-utgång 0 PS/2 1
Miljöparametrar
Varför publicerar vi miljöparametrar?
Många konsumenter kanske tycker att det är svårt att välja hållbart. På Elgiganten vill vi göra det lättare att se hur våra produkter har producerats och vilken typ av miljö- och klimatpåverkan de har.
| Leverantörens EcoVadis score | Bronze |
| Tredje parts miljögodkännande | Inget godkännande |
| Energimärkning | Ingen bedömning |
| Tillverkad i | Kina |
